Capabilites


Rosene Machine, Inc has been providing customers with Service, Integrity, and Reliablility since 1979.  Our Machine Shop has capabilities to handle small lots and large lots of many different sizes and material.  This is a sample of the different types of CNC machines in our facility.







Sprint42-8 Linear with 12' Bar Feed

Twin Spindle Screw Machine

8 Axis                         X, Y, Z, +C

Tool Capacity               30

Max Turning Dia           42mm

Max Cutting Length       120mm

Spindle Speed               6500rpm


Mori Seiki NL3000MC/1250

Travel

X Axis                                 11”

Z Axis                                 49”

Max Swing                          32.5”

Max Turning Diameter       16.5”

Between Centers                 49”

Bar Capacity                       3.5”

Spindle Speed                     3000 rpm / 40HP

Chuck Diameter                  12”

Live Tooling


Super Max YCM TC 26L, Fanuc 18-T

Travel

X Axis                     9.84”

Z Axis                     43.3”

Max Swing Over carriage        13.7”

Max Turning Diameter           17.7”

Between Centers                     43.7”

Bar Capacity                           3”

Spindle Speed                         3000-12” Chuck

Spindle Bore Diameter            3.46, 4000-10” Chuck

Chuck Diameter                      10” – 12”

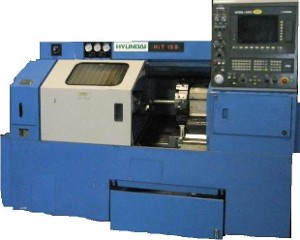

Hyundai HiT 15S with Bar Feed

               Travel

               X Axis                                7.1”

               Z Axis                                20”

               Max Swing                          17.32”

               Max Cutting Dia                 10”

               Max Cutting Length           18”

               Between Centers                 25”

               Bar Capacity                       2”

               Spindle Speed                     4500 rpm

               Chuck Dia                           8”




Doosan HP4000



Doosan HP 4000 Horizontal Machining Center

30 HP/14,000 RPM Spindle
High Feedrate
Rapid Travel
Pallet Size (2)                          400mm (15.75”)
Maximum Workpiece                 35.4” x 24.8” 880lbs
Tool Changer                           116 pc
Big Plus Dual Contact Spindle




Makino A51 Horizontal Machining Center

30 HP/12,000 RPM Integral Spindle

High Feedrate                          1574 ipm

Rapid Travel                            1968 ipm

Pallet Size (2)                          400mm (15.75”)

Maximum Workpiece                 35.4” x 24.8”, 880lb.




Haas VF-2 Vertical Machining Center

SN: 8904

VMC Travels

X Axis              30”         Distance Spindle Nose to Table:  4” to 24”

Y axis               16”        Table Size                                     36” x 14”

Z axis               20”         Equipped with:                            Rigid Tapping

Spindle Speed  7500 rpm

Spindle Taper  Cat 40

Tool Changer  20




Doosan 5700 Vertical Machining Center

VMC Travels

X axis                      41”

Y axis                       22”

Table Size              51” X 22”

Z axis                      20”          Equipped with:   Rigid Tapping

Spindle Speed          12000 rpm                       Quick Code

Spindle Taper          Cat 40                                Rotation/Scaling

Tool Changer           30                                     Through Spindle Coolant

 4TH AXIS
